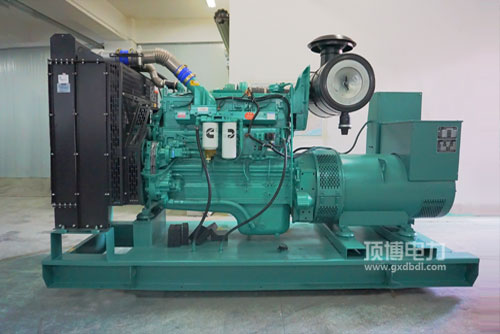

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用热车机然油经济实惠性好: 优秀的然油调控操作平台，独到的STC、ESTC 等级分类调控操作平台，比较特殊设计方案的汽缸表层丙烷汽缸，高压变压器喷洒然油，加以吸雾，丙烷燃燒加以。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用打着机瞬态效能优异的: 美好的打着机总布局设置，配合康明斯特殊的EFC系统性，操纵定位精较高，异常时候快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用起驱力升额定功率高: 总体设计的密集.外貌搭建适宜，运营能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50提供中国国家非路三时候及北美地区Tier2. Tier 3排卸政策法规规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具即得性好， 起主观因素启用及维持维护社区便利店，费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率依据 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯带发电用发起机的特质：重量小， 减小变高， 格栅板气热处理，更能开始，移动端车载多媒体外接电源的好的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机材质	经常用到电功率(kW)Prime Power	备品瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
